Contrôle d'accès intelligent basé sur ESP32 et LCD

lcd esp32

3 réponses à ce sujet

#1 marcus

marcus

    Nouveau membre

  • Membres
  • 24 messages

Posté 15 septembre 2021 - 02:35

Brève introduction

La maison intelligente devient de plus en plus courante avec le développement de la technologie, cet article se concentrera sur les aspects de sécurité du projet de contrôle d'accès intelligent.
Cet article utilise l'écran tactile de STONE pour envoyer des commandes au MCU afin de contrôler le relais et le module MFRC522.
Le principe de la lecture de carte : en pilotant le module RFID-RC522, identifier la carte d'identité proche de la carte d'identité, puis déterminer si l'ID existe dans la base de données du mot type, l'ID est la valeur type du mot, si l'existence de la vérification à travers, et ensuite imprimer le nom correspondant, et ensuite piloter la serrure électromagnétique de la même manière.

Matériel nécessaire


Fonction réalisée

1. enregistrement de la carte.
2. enregistrement du nom d'utilisateur et du mot de passe.
3. glissement de la carte pour déverrouiller la serrure électronique.
4. Enregistrement du nom d'utilisateur et du mot de passe pour déverrouiller la serrure électronique.

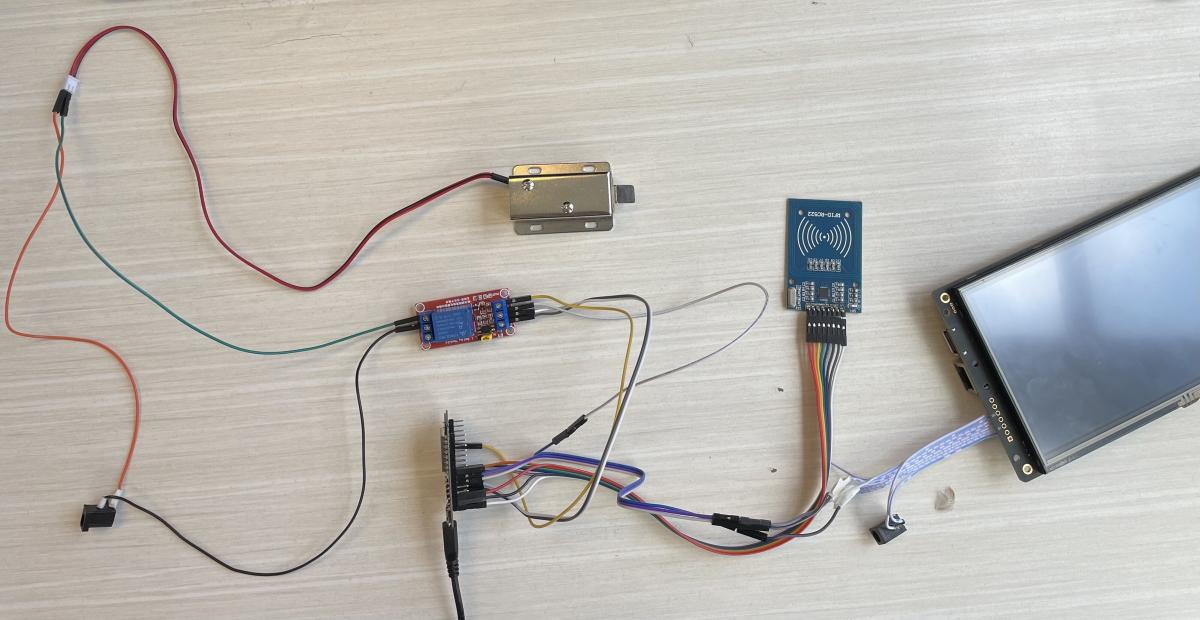

Schéma de connexion

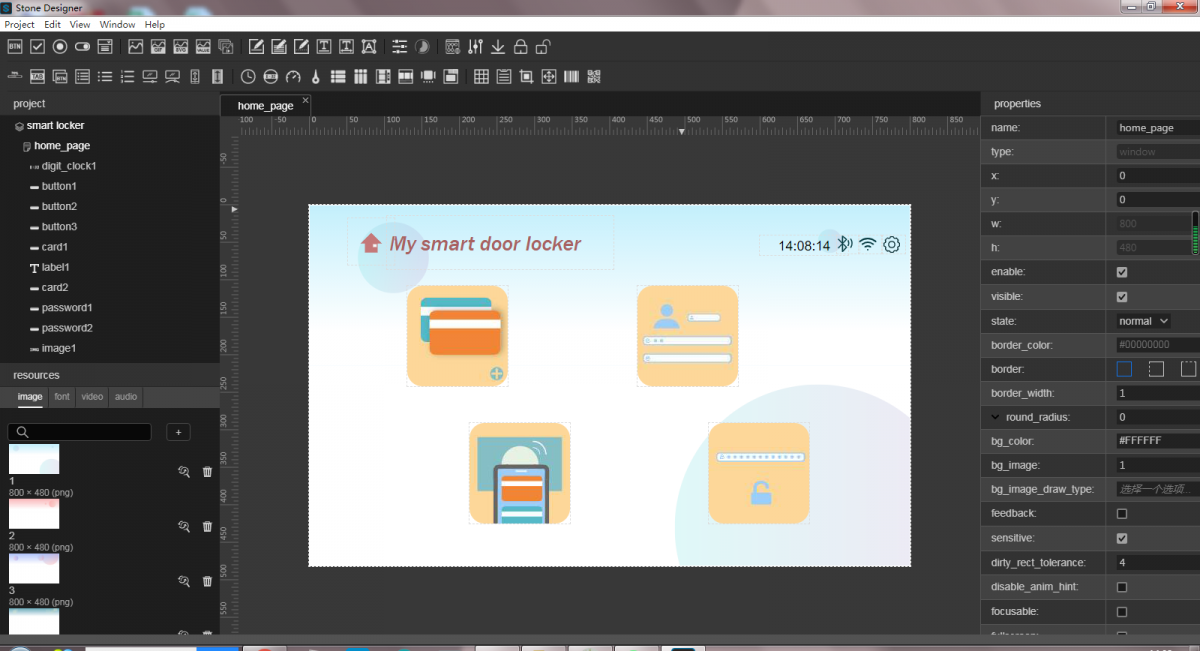

Conception de l'interface utilisateur graphique

GUI design.png

code

import mfrc522
import time
import _thread
from os import uname
from machine import Pin, UART
#from pyb import UART
#import machine

suos = Pin(32,Pin.OUT)
uart2 = UART(2, baudrate=115200, rx=16,tx=17,timeout=10)

ESP32_HSPI_CLOCK = 14
ESP32_HSPI_SLAVE_SELECT = 15
ESP32_HSPI_MISO = 12
ESP32_HSPI_MOSI = 13
ESP32_MFRC522_RST = 5

rx3 = []
rx_name = []
user_id_flag = False
password_flag = False
temp_id = ''
temp_mima = ''
personnel_id = {'zbw':[236,230,169,47],'lbw':[19,165,93,4]}
personnel_ps = {'zbw':'zbw3366','lbw':'lbwnb'}
admin_password = ('yyds')
button_cmd = [16,1]
edit1_cmd = [16,112]
edit2_cmd = [16,113]
edit3_cmd = [16,114]

if uname()[0] == 'esp32':
	rdr = mfrc522.MFRC522(ESP32_HSPI_CLOCK, ESP32_HSPI_MOSI, ESP32_HSPI_MISO, ESP32_MFRC522_RST, ESP32_HSPI_SLAVE_SELECT)

def do_write():
	try:
		(stat, tag_type) = rdr.request(rdr.REQIDL)
		if stat == rdr.OK:
			(stat, raw_uid) = rdr.anticoll()
			if stat == rdr.OK:
				print("New card detected")
				print("  - tag type: 0x%02x" % tag_type)
				print("  - uid : 0x%02x%02x%02x%02x" % (raw_uid[0], raw_uid[1], raw_uid[2], raw_uid[3]))
				print("")
				if rdr.select_tag(raw_uid) == rdr.OK:
					key = [0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF]
					if rdr.auth(rdr.AUTHENT1A, 8, key, raw_uid) == rdr.OK:
						stat = rdr.write(8, b"\x00\x53\x00\x54\x00\x4F\x00\x4E\x00\x45\x0a\x0b\x0c\x0d\x0e\x0f")
						rdr.stop_crypto1()
						if stat == rdr.OK:
							print("Data written to card")
						else:
							print("Failed to write data to card")
					else:
						print("Authentication error")
				else:
					print("Failed to select tag")

	except KeyboardInterrupt:
		print("write error")


def do_read():
	while True:
		try:
			(stat, tag_type) = rdr.request(rdr.REQIDL)

			if stat == rdr.OK:
				(stat, raw_uid) = rdr.anticoll()
				if stat == rdr.OK:
					print("New card detected")
					print("  - tag type: 0x%02x" % tag_type)
					print("  - uid   : 0x%02x%02x%02x%02x" % (raw_uid[0], raw_uid[1], raw_uid[2], raw_uid[3]))
					print (raw_uid[0], raw_uid[1], raw_uid[2], raw_uid[3])
					print("")
					if rdr.select_tag(raw_uid) == rdr.OK:
						key = [0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF]
						if rdr.auth(rdr.AUTHENT1A, 8, key, raw_uid) == rdr.OK:
							print("Address 8 data: %s" % rdr.read(8))
							for ps in personnel_id:
								if raw_uid[0:4:1] == personnel_id.get(ps):
									suos.value(1)
									print(ps)
									uart_write(ps, *raw_uid[0:4:1])
									time.sleep(3)
									uart2.sendbreak()
									break
							rdr.stop_crypto1()
							time.sleep(3)
							suos.value(0)
						else:
							print("Authentication error")
					else:
						print("Failed to select tag")
			if uart2.any()>1:
				rx2 = []
				data_name2 = ''
				bin_data = uart2.read(40)
				uart2.sendbreak()
				rx1 = list(bin_data)
				for item in rx1:
					rx2.append(chr(item))
				print(rx2)
				if rx1[3:5:1] == button_cmd:
					data_name_len = rx1[6] - 1
					data_name = rx2[7:data_name_len+7:1]
					data_name2 = ''.join(data_name)
					print(data_name2)
					if data_name2 == 'back3':
						return
		except KeyboardInterrupt:
			print("read error")

def do_read2 (idd):
	print(idd)
	while True:
		try:
			(stat, tag_type) = rdr.request(rdr.REQIDL)

			if stat == rdr.OK:
				(stat, raw_uid) = rdr.anticoll()
				if stat == rdr.OK:
					print("New card detected")
					print("  - tag type: 0x%02x" % tag_type)
					print("  - uid   : 0x%02x%02x%02x%02x" % (raw_uid[0], raw_uid[1], raw_uid[2], raw_uid[3]))
					print (raw_uid[0], raw_uid[1], raw_uid[2], raw_uid[3])
					print("")
					if rdr.select_tag(raw_uid) == rdr.OK:
						key = [0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF]
						if rdr.auth(rdr.AUTHENT1A, 8, key, raw_uid) == rdr.OK:
							print("Address 8 data: %s" % rdr.read(8))
							personnel_id[idd] = raw_uid[0:4:1]
							uart_write3(*raw_uid[0:4:1])
							rdr.stop_crypto1()
						else:
							print("Authentication error")
					else:
						print("Failed to select tag")
			if uart2.any()>1:
				rx2 = []
				data_name2 = ''
				bin_data = uart2.read(40)
				uart2.sendbreak()
				rx1 = list(bin_data)
				for item in rx1:
					rx2.append(chr(item))
				if rx1[3:5:1] == button_cmd:
					data_name_len = rx1[6] - 1
					data_name = rx2[7:data_name_len+7:1]
					data_name2 = ''.join(data_name)
					print(data_name2)
				if data_name2 == 'back1':
					return

		except KeyboardInterrupt:
			print("read error")

def uart_write(text, *ids):
#	print(text, *ids)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardname1","text":"'+str(text)+'"}>ET')
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid1","text":"'+str(ids)+'"}>ET')
	uart2.write('ST<{"cmd_code":"set_visible","type":"widget","widget":"lock1","visible":true}>ET')
	time.sleep(3)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardname1","text":"''"}>ET')
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid1","text":"''"}>ET')
	uart2.write('ST<{"cmd_code":"set_visible","type":"widget","widget":"lock1","visible":false}>ET')

def uart_write2(text,text2):
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid","text":"'+text+'"}>ET')
	time.sleep(3)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid","text":"'+text2+'"}>ET')
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"edit2","text":"''"}>ET')

def uart_write3(*id2):
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid","text":"'+str(id2)+'"}>ET')
	time.sleep(3)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid","text":"''"}>ET')

def uart_write4(text,text2):
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"login","text":"'+text+'"}>ET')
	time.sleep(1)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"login","text":"'+text2+'"}>ET')
	time.sleep(1)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"edit3","text":"''"}>ET')
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"edit4","text":"''"}>ET')
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"edit7","text":"''"}>ET')

def uart_write5():
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid","text":"'+str(id2)+'"}>ET')
	time.sleep(3)
	uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"cardid","text":"''"}>ET')

def card_zhuce():
	while True:
		if uart2.any():
			user_id = ''
			password = ''
			rx2 = []
			rx_num = 0
			bin_data = uart2.read(40)
			uart2.sendbreak()
			rx1 = list(bin_data)
			for item in rx1:
				rx2.append(chr(item))
				rx_num += 1
			data_end = rx_num-5
			data_id_st = rx2[8:13:1]
			data_id_st2 = ''.join(data_id_st)
			print(data_id_st2)
			if data_id_st2 == 'edit1':
				data_id_st3 = rx2[15:data_end:1]
				data_id_st4 = ''.join(data_id_st3)
				print(data_id_st4)
				if data_id_st4 != '':
					name = True
			elif data_id_st2 == 'edit2':
				data_id_st5 = rx2[15:data_end:1]
				data_id_st6 = ''.join(data_id_st5)
				if data_id_st6 == admin_password:
					admin = True
					uart_write2('Verification passed!','Please place the card!')
					do_read2(data_id_st4)
					return

def mima_zuce():
	temp_id3 = ''
	temp_mima3 = ''
	while True:
		if uart2.any():
			user_id = ''
			password = ''
			rx2 = []
			rx_num = 0
#			data_end = 0
			bin_data = uart2.read(40)
			uart2.sendbreak()
			rx1 = list(bin_data)
			for item in rx1:
				rx2.append(chr(item))
				rx_num += 1
#				if (rx2[rx_num] == 'T') and (rx2[rx_num-1] == 'E') and (rx2[rx_num-2] == '>'):
#					break
			data_end = rx_num-5
			data_id_st = rx2[8:13:1]
			data_id_st2 = ''.join(data_id_st)
			print(data_id_st2)
			if rx1[3:5:1] == button_cmd:
				data_name_len = rx1[6] - 1
				data_name = rx2[7:data_name_len+7:1]
				data_name2 = ''.join(data_name)
				print(data_name2)
				if data_name2 == 'back2':
					return
			if data_id_st2 == 'edit3':
				data_id_st3 = rx2[15:data_end:1]
				data_id_st4 = ''.join(data_id_st3)
				print(data_id_st4)
				user_id_flag = True
				temp_id3 = data_id_st4
#				personnel_ps[temp_id] = raw_uid[0:4:1]
			elif data_id_st2 == 'edit4':
				data_id_st5 = rx2[15:data_end:1]
				data_id_st6 = ''.join(data_id_st5)
				print(data_id_st6)
#				if personnel_ps.get(temp_id) == data_id_st6:
				password_flag = True
				temp_mima3 = data_id_st6
#					personnel_ps[temp_id] = password_flag

#			print(rx2,user_id_flag,password_flag)

			elif data_id_st2 == 'edit7':
				data_id_st5 = rx2[15:data_end:1]
				data_id_st6 = ''.join(data_id_st5)
				if (data_id_st6 == admin_password) and (password_flag == True) and (user_id_flag == True):
					admin = True
					personnel_ps[temp_id3] = temp_mima3
					password_flag = False
					user_id_flag = False
					uart_write4('Verification passed!','login was successful!')


def password_loin():
	temp_id2 = ''
	temp_mima = ''
	while True:
		if uart2.any():
			user_id = ''
			password = ''
			rx2 = []
			rx_num = 0
#			data_end = 0
			bin_data = uart2.read(40)
			uart2.sendbreak()
			rx1 = list(bin_data)
			for item in rx1:
				rx2.append(chr(item))
				rx_num += 1
#				if (rx2[rx_num] == 'T') and (rx2[rx_num-1] == 'E') and (rx2[rx_num-2] == '>'):
#					break
			data_end = rx_num-5
			data_id_st = rx2[8:13:1]
			data_id_st2 = ''.join(data_id_st)
			print(data_id_st2)
			if rx1[3:5:1] == button_cmd:
				data_name_len = rx1[6] - 1
				data_name = rx2[7:data_name_len+7:1]
				data_name2 = ''.join(data_name)
				print(data_name2)
				if data_name2 == 'back4':
					return
			if data_id_st2 == 'edit5':
				data_id_st3 = rx2[15:data_end:1]
				data_id_st4 = ''.join(data_id_st3)
				print(data_id_st4)
				if data_id_st4 in personnel_ps:
					user_id_flag = True
					temp_id2 = data_id_st4
			elif data_id_st2 == 'edit6':
				data_id_st5 = rx2[15:data_end:1]
				data_id_st6 = ''.join(data_id_st5)
				print(data_id_st6)
				print(temp_id2)
				print(personnel_ps)
				if personnel_ps.get(temp_id2) == data_id_st6:
					password_flag = True

#			print(rx2,user_id_flag,password_flag)
					print(user_id_flag,password_flag)
					if (password_flag == True) and (user_id_flag == True):
						uart_write(temp_id2,temp_id2)
						password_flag = False
						user_id_flag = False
						suos.value(1)
						uart2.write('ST<{"cmd_code":"set_visible","type":"widget","widget":"lock2","visible":true}>ET')
						uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"edit5","text":"''"}>ET')
						uart2.write('ST<{"cmd_code":"set_text","type":"label","widget":"edit6","text":"''"}>ET')
						time.sleep(3)
#						uart_write('student','')
						suos.value(0)
						uart2.write('ST<{"cmd_code":"set_visible","type":"widget","widget":"lock2","visible":false}>ET')
						uart2.sendbreak()

while True:
	if uart2.any()>1:
		rx2 = []
		data_name2 = ''
		bin_data = uart2.read(40)
#		time.sleep(1)
		uart2.sendbreak()
#		time.sleep(1)
		rx1 = list(bin_data)
		for item in rx1:
			rx2.append(chr(item))
		print(rx2)
		if rx1[3:5:1] == button_cmd:
			data_name_len = rx1[6] - 1
			data_name = rx2[7:data_name_len+7:1]
			data_name2 = ''.join(data_name)
			print(data_name2)
			if data_name2 == 'card1':
				card_zhuce()
			elif data_name2 == 'password1':
				mima_zuce()
			elif data_name2 == 'card2':
				do_read()
			elif data_name2 == 'password2':
				password_loin()






#2 marcus

marcus

    Nouveau membre

  • Membres
  • 24 messages

Posté 15 septembre 2021 - 02:39

démonstration vidéo





#3 Melmet

Melmet

    Pilier du forum

  • Modérateur
  • PipPipPipPipPip
  • 1 324 messages
  • Gender:Male
  • Location:Saint-Sozy (46200)

Posté 15 septembre 2021 - 05:59

J'aime bien ton systeme, mais ce qui me freine c'est le prix de l'écran. :)


Ne demande jamais à un robot de faire ce que tu peux faire toi même. :nono: :laugh1:


#4 marcus

marcus

    Nouveau membre

  • Membres
  • 24 messages

Posté hier, 04:22

J'aime bien ton systeme, mais ce qui me freine c'est le prix de l'écran. :)



Merci pour vos commentaires et vos encouragements !
J'ai longtemps hésité à acheter cet écran au début, mais j'ai ensuite compris à quoi il servait.

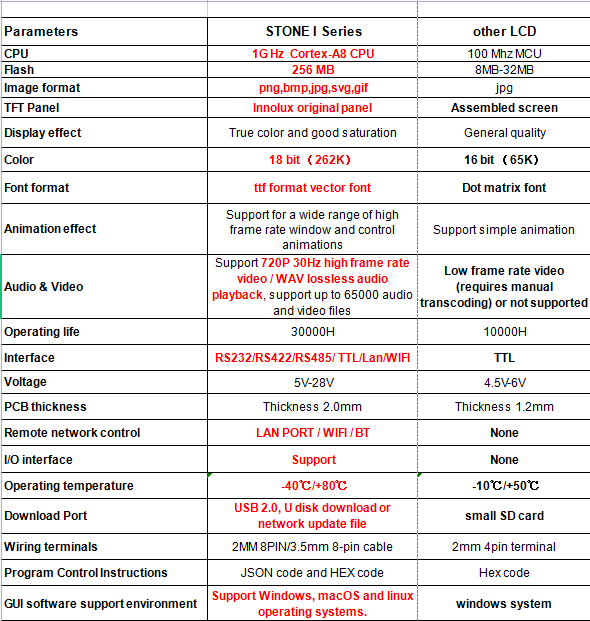

J'ai acheté beaucoup d'autres LCD auparavant, et j'ai fait une comparaison simple pour qu'en le regardant, on puisse facilement comprendre pourquoi il est si cher. Et le fait que je l'utilise me donne une sensation formidable !





Répondre à ce sujet







1 utilisateur(s) li(sen)t ce sujet

0 members, 1 guests, 0 anonymous users
